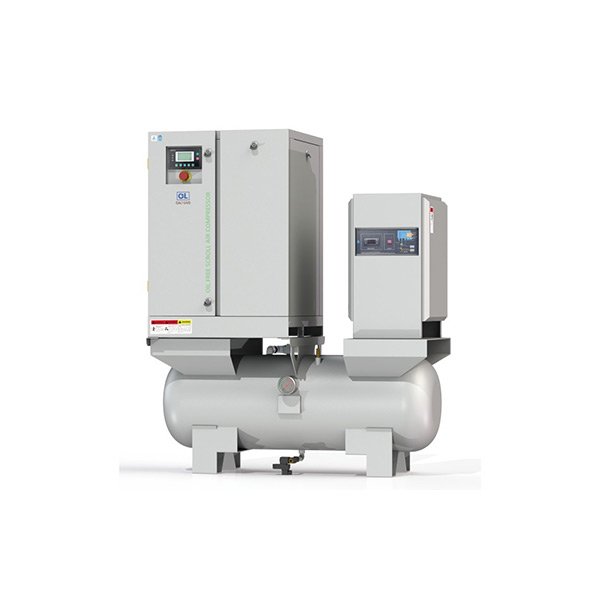

Belt Drive All In One Scroll Air Compressor
Belt drive all-in-one oil-free scroll compressor with 200-300 L air receiver and refrigerated dryer: 2.2-16.5 kW, 0.8 MPa, ready to run.
+8615895086578
Mobile
sales@ty-cz.com
The belt drive all in one scroll air compressor puts the scroll element, power-frequency motor, 200-300 L air receiver, refrigerated dryer and filtration into one cabinet. From 2.2 kW to 16.5 kW at 0.8 MPa, it is a complete oil-free air station: connect power and pipe and the unit supplies dry, Class 0 air without any site assembly.
Key features
- Complete station. Receiver tank, refrigerated dryer and filters are already inside the cabinet.
- Belt drive economy. Standard motor and belt transmission keep the cost of a complete station low.
- 200 L / 300 L receiver. Buffers demand peaks so the compressor does not cycle unnecessarily.
- 100% oil-free. Class 0 air for food, medical, laboratory and electronics use.
- Intelligent control panel. Pressure, temperature and maintenance data on one display.
- Compact cabinet. 1320 x 640 x 1620 mm for the 2.2-5.5 kW models.
Technical specifications
| TYPE | MODEL NO. | POWER (KW) | POWER (HP) | VOLTAGE | RATED PRESSURE (MPa) | CAPACITY (m3/min） | AIR RECEIVER TANK (L) | DIMENSION (L*W*H) | WEIGHT (KG) |
| BELT DRIVE | L03T-Y22-8LR | 2.2 | 3 | 3N 380V 50Hz | 0.8 | 0.22 | 200 | 1390*630*1445 | 245 |
| L05T-Y37-8LR | 3.7 | 5 | 0.38 | 200 | 1320*640*1620 | 260 | |||
| L06T-Y55-8LR | 5.5 | 7.5 | 0.57 | 200 | 1320*640*1620 | 264 | |||
| L05T-Y75-8LR | 7.5 (3.7*2) | 10 | 0.76 | 300 | 1780*760*1920 | 468 | |||
| L06T-Y110-8LR | 11 (5.5*2) | 15 | 1.14 | 300 | 1780*760*1920 | 475 | |||
| L06T-Y165-8LR | 16.5 (5.5*3) | 22.5 | 1.71 | 300 | 1520*760*2380 | 680 |
For variable air demand, the PM motor version of the all-in-one unit saves more energy. Tank and dryer configuration can be adapted to your site.
Applications
- Dental and medical clinics needing a self-contained air station
- Laboratory instrument air
- Food and beverage packaging
- Small pharmaceutical and cosmetics production
- Workshops replacing oil-lubricated compressors
Why buy from Hejun
- 100% oil-free, Class 0 air. Scroll compression with no oil in the air path, verified to ISO 8573-1 Class 0 by TÜV Rheinland.
- Manufacturer, not a trader. 80+ patents, 30+ engineers and an in-house test centre in Zhejiang, China.
- OEM / ODM ready. Custom voltage, pressure, colour, logo, packaging and nameplate for distributors and equipment builders.
- Every unit tested three times before shipment: pre-run, teardown inspection and performance test.
- Fast response. Quotation within 24 hours, English-speaking export team, worldwide shipping.

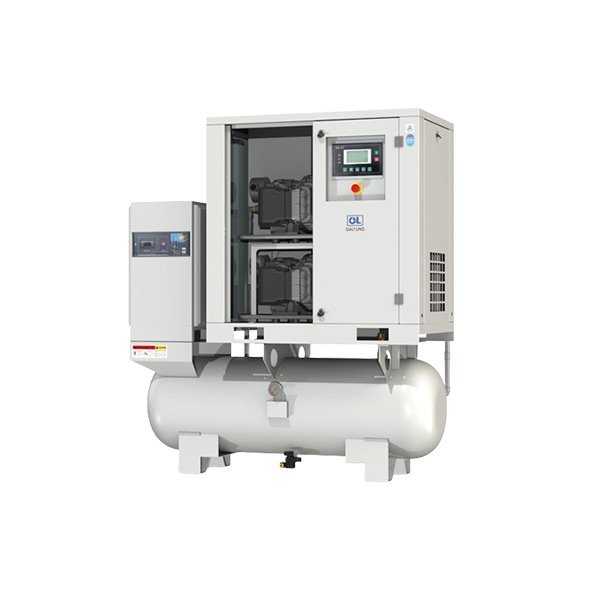

Product detail images
Frequently asked questions
What is included in the cabinet?
Scroll compressor, motor, 200 L or 300 L air receiver, refrigerated dryer and filtration. Optional coalescing filters can be added for Class 0 particle and water levels.
How much space do I need?
About 1.4 m x 0.7 m of floor space for the 2.2-5.5 kW models, plus clearance for ventilation and service access.
Can it be installed outdoors?
The standard cabinet is designed for indoor installation. For outdoor use we can discuss a weatherproof enclosure as an OEM option.
