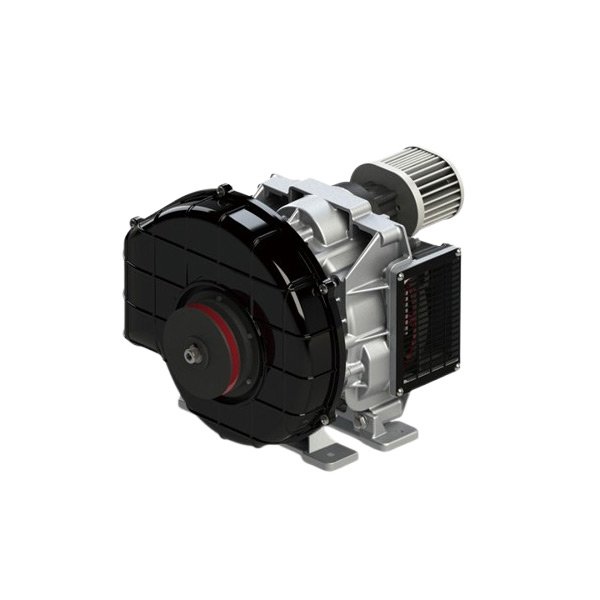

Oil Free Scroll Compressor Belt Air End 2.2KW–7.5KW
Belt driven oil-free scroll air end, 2.2-7.5 kW at 8-10 bar, TUV Class 0, silent low-vibration operation, long maintenance interval.
+8615895086578
Mobile
sales@ty-cz.com
The belt drive oil free scroll compressor air end covers 2.2 kW, 3.7 kW, 5.5 kW and 7.5 kW at 8-10 bar, with TUV Rheinland Class 0 certification. It is the compression module behind many oil-free scroll compressors on the market: quiet, almost vibration-free, and with a maintenance interval far longer than a piston or screw alternative because there is no oil to change.
Key features
- TUV Rheinland Class 0. Certified oil-free air to ISO 8573-1 Class 0.
- 2.2 kW to 7.5 kW. Belts allow speed optimisation for different flow and pressure requirements.
- 10 bar available. Standard 8 bar, with a 1.0 MPa high-pressure option.
- Silent and low vibration. Suitable for clinics, laboratories and food production areas.
- Long maintenance interval. Few wearing parts, no oil, no oil filter, no separator.
- OEM air end. Supplied bare or with motor, pulley guard and fan for your own machine design.
Technical specifications
Model-by-model flow, pressure and dimension data is shown in the data sheet images below. Tell us the flow and pressure you need and we will confirm the right air end.
Applications
- Oil-free scroll compressor OEMs and assemblers
- Dental, medical and laboratory air systems
- Food and beverage processing
- Oxygen and nitrogen generator feed air
- Replacement air end for existing belt-driven scroll units
Why buy from Hejun
- 100% oil-free, Class 0 air. Scroll compression with no oil in the air path, verified to ISO 8573-1 Class 0 by TÜV Rheinland.
- Manufacturer, not a trader. 80+ patents, 30+ engineers and an in-house test centre in Zhejiang, China.
- OEM / ODM ready. Custom voltage, pressure, colour, logo, packaging and nameplate for distributors and equipment builders.
- Every unit tested three times before shipment: pre-run, teardown inspection and performance test.
- Fast response. Quotation within 24 hours, English-speaking export team, worldwide shipping.

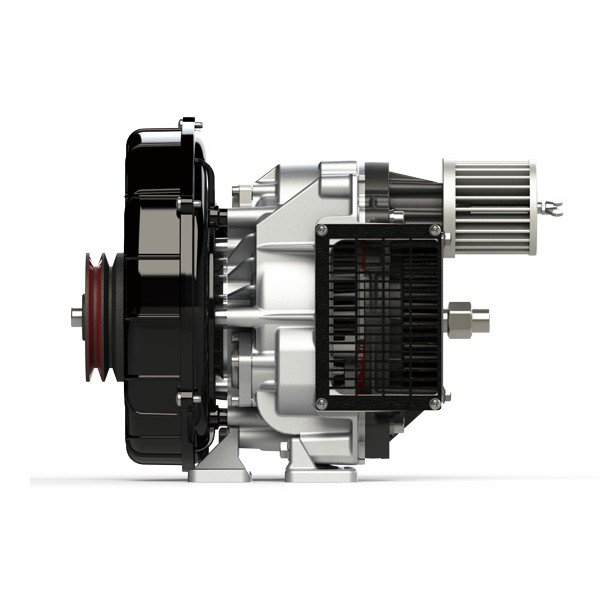

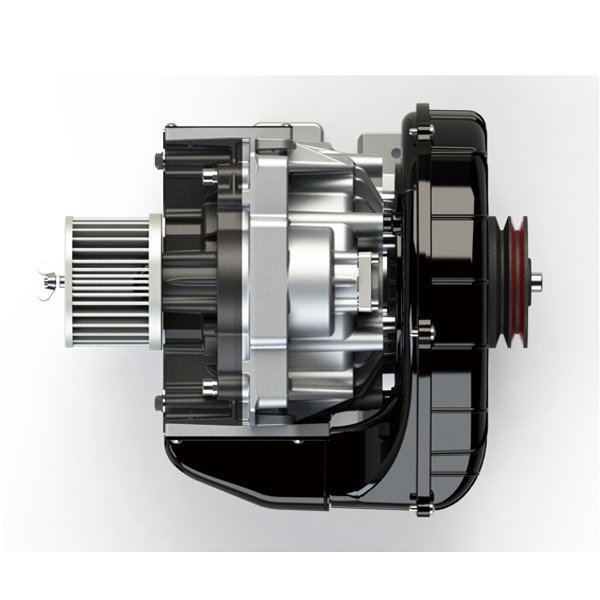

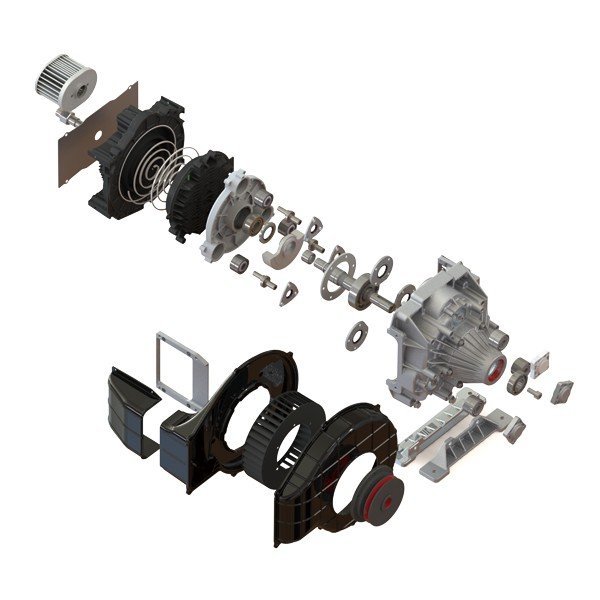

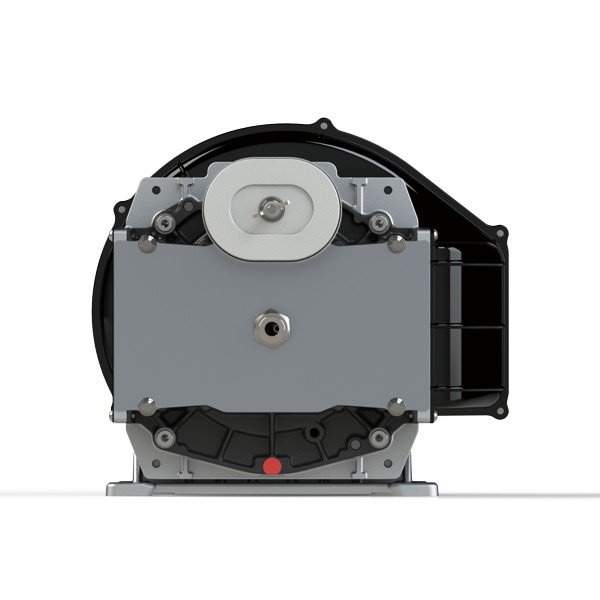

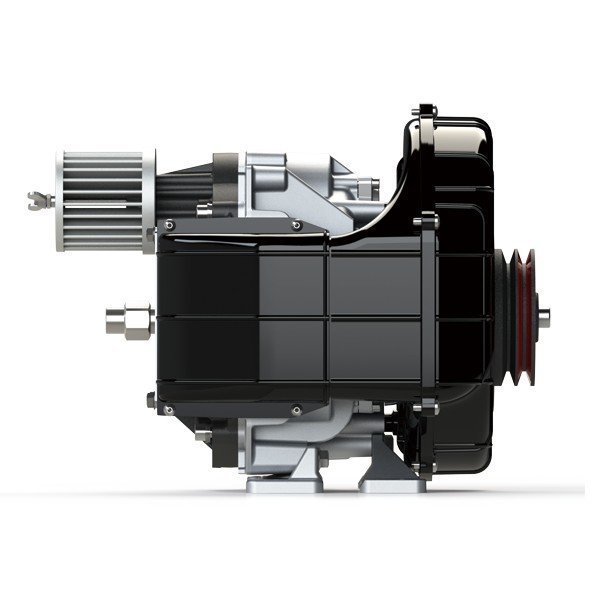

Product detail images
Frequently asked questions
What is the difference between this air end and the PM air end?
This air end is driven by a belt from a standard motor, so speed can be changed with pulleys and the cost is lower. The PM air end uses a direct-coupled permanent magnet motor for higher efficiency at partial load.
Can I use my own motor and pulley?
Yes. The air end is supplied with a shaft and pulley interface so you can match it to your own motor and enclosure.
Is a 10 bar version available?
Yes, 1.0 MPa versions are available for all models in the range.
