PM Motor All In One Scroll Air Compressor
Plug-and-play oil-free scroll compressor with 200-300 L air receiver and refrigerated dryer built in: 2.2-11 kW, 0.8 MPa, Class 0 air.
+8615895086578
Mobile
sales@ty-cz.com

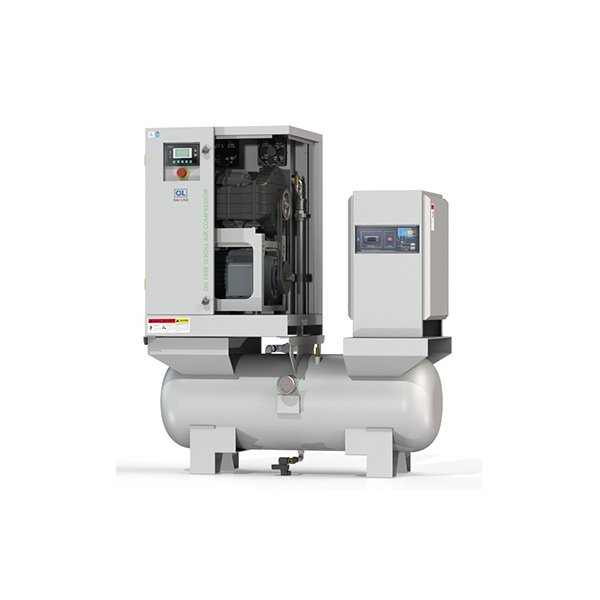

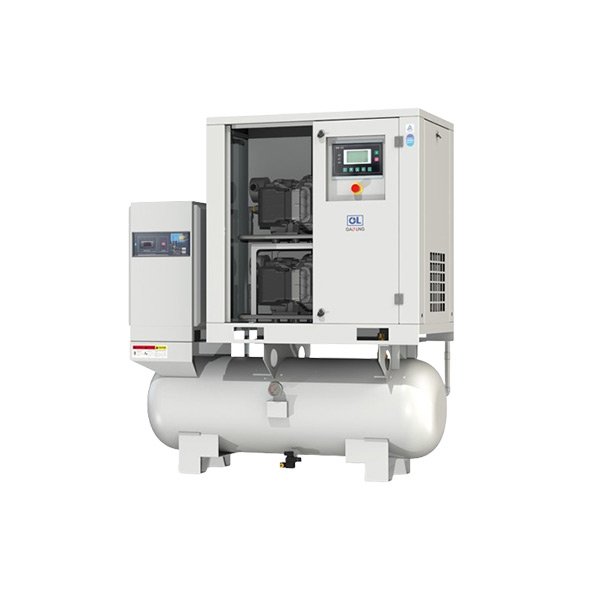

The PM motor all in one oil free scroll air compressor packages the scroll element, permanent magnet motor, 200-300 L air receiver, refrigerated dryer and filtration into a single cabinet. You connect power and pipe, and the unit delivers dry, 100% oil-free air at 0.8 MPa from 2.2 kW to 11 kW – the simplest way to install Class 0 air in a clinic, laboratory or food plant.
Key features
- Air receiver and dryer included. 200 L or 300 L tank plus refrigerated dryer inside the cabinet – no separate installation work.
- 100% oil-free Class 0 air. Suitable for direct contact with food, pharmaceuticals and breathing air systems.
- Permanent magnet drive. Z-P models use a PM synchronous motor for higher efficiency at partial load.
- Intelligent control panel. Pressure, temperature, runtime and alarm display in one interface.
- Small footprint. 1320 x 550 x 1550 mm for the 2.2-5.5 kW models, so it fits a service room or production corner.
- Quiet operation. Scroll compression with an acoustic cabinet keeps noise low enough for indoor installation.
Technical specifications
| TYPE | MODEL NO. | POWER (KW) | POWER (HP) | VOLTAGE | RATED PRESSURE (MPa) | CAPACITY (m³/min） | AIR RECEIVER TANK (L) | DIMENSION (L*W*H) | WEIGHT (KG) |
| PM MOTOR | L03Z-P22-8LR | 2.2 | 3 | 3N 380V 50Hz | 0.8 | 0.22 | 200 | 1320*550*1550 | 225 |
| L05Z-P37-8LR | 3.7 | 5 | 0.38 | 200 | 1320*550*1550 | 240 | |||
| L06Z-P55-8LR | 5.5 | 7.5 | 0.57 | 200 | 1320*550*1550 | 245 | |||
| L05Z-P75-8LR | 7.5 (3.7*2) | 10 | 0.76 | 300 | 1630*700*1800 | 371 | |||
| L06Z-P110-8LR | 11 (5.5*2) | 15 | 1.14 | 300 | 1630*700*1800 | 414 |
T-Y models use a power-frequency motor for steady-duty applications; Z-P models use the permanent magnet motor. Tank size, dryer and filtration can be configured to your air quality requirement.
Applications
- Dental clinics and small hospitals
- Laboratory and analytical instrument air
- Food and beverage packaging lines
- Pharmaceutical and cosmetics production
- Any workshop that needs a self-contained Class 0 air station
Why buy from Hejun
- 100% oil-free, Class 0 air. Scroll compression with no oil in the air path, verified to ISO 8573-1 Class 0 by TÜV Rheinland.
- Manufacturer, not a trader. 80+ patents, 30+ engineers and an in-house test centre in Zhejiang, China.
- OEM / ODM ready. Custom voltage, pressure, colour, logo, packaging and nameplate for distributors and equipment builders.
- Every unit tested three times before shipment: pre-run, teardown inspection and performance test.
- Fast response. Quotation within 24 hours, English-speaking export team, worldwide shipping.
Product detail images
Frequently asked questions
Is the dryer included?
Yes. The all-in-one cabinet includes a refrigerated dryer and a 200 L or 300 L air receiver. Additional coalescing filters can be added for Class 0 particle and water levels.
Can I connect it directly to my production line?
Yes. The unit is delivered as a complete station: connect the electrical supply and the air outlet, and it is ready to run.
Do you offer a belt-driven version?

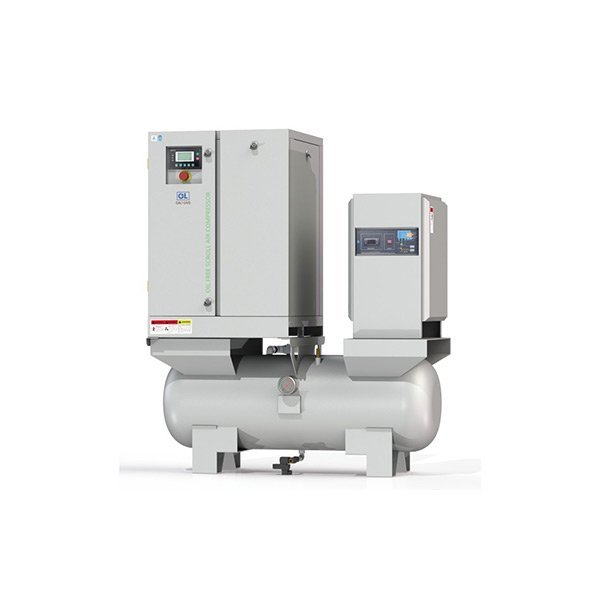

Yes – see the belt drive all in one scroll air compressor, which uses a standard power-frequency motor.
