Belt Type Compressor 2.2KW–55KW
Belt driven 100% oil-free scroll air compressor, 2.2-55 kW (3-75 hp) at 8-10 bar, silent and low vibration, economical for steady-duty operation.
+8615895086578
Mobile
sales@ty-cz.com

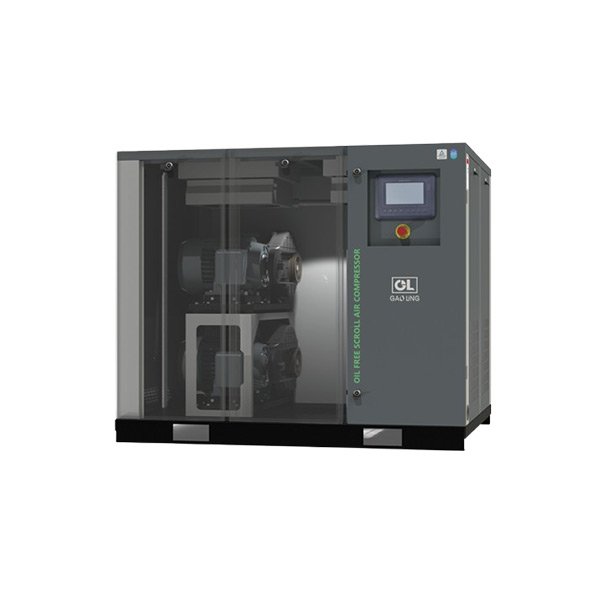

The belt type oil free scroll air compressor pairs a standard power-frequency motor with the Hejun scroll element through a belt drive. It covers 2.2 kW to 55 kW (3-75 hp) at 0.8-1.0 MPa, and with 1-10 scroll units inside one enclosure it reaches capacities from 0.24 m3/min up to several cubic metres per minute. It is the economical choice for steady, full-load operation where the extra cost of a permanent magnet drive is not justified.
Key features
- Economical belt drive. Standard power-frequency motor and belt transmission keep the purchase cost below the PM version.
- 1-10 scroll units. 2.2 kW, 3.7 kW, 7.5 kW, 11 kW, 15 kW, 18.5 kW and larger models are built from parallel modules.
- 100% oil-free air. Class 0 air quality for medical, food, pharmaceutical and electronics production.
- Silent and low vibration. Scroll compression with no reciprocating imbalance – suitable for indoor installation.
- Compact internal structure. Scientific air circulation cooling keeps the element and motor at stable temperature.
- Intelligent control panel. Simple pressure setting, runtime logging and maintenance reminders.
Technical specifications
| TYPE | MODEL NO. | POWER (KW) | POWER (HP) | RATED PRESSURE (MPa) | VOLTAGE | CAPACITY (m³/min） | DIMENSION (L*W*H) | WEIGHT (KG) |
| G03TY BELT DRIVE | L03T-Y22-8X | 2.2 | 3 | 0.8 | 3N 380V 50Hz | 0.24 | 600*560*800 | 100 |
| G05TY BELT DRIVE | L05T-Y37-8X | 3.7 | 5 | 0.8 | 3N 380V 50Hz | 0.4 | 600*560*800 | 112 |
| L05T-Y75-8 | 7.5(3.7*2) | 10 | 0.8 | 1180*760*1250 | 280 | |||
| L05T-Y110-8 | 11(3.7*3) | 15 | 1.2 | 1180*760*1690 | 496 | |||
| L05T-Y150-8 | 15(3.7*4) | 20 | 1.6 | 1500*1180*1250 | 554 | |||
| L05T-Y185-8 | 18.5(3.7*5) | 25 | 2.0 | 1420*1010*1510 | 808 | |||
| L05T-Y220-8 | 22(3.7*6) | 30 | 2.4 | 1420*1010*1510 | 878 | |||
| L05T-Y260-8 | 26(3.7*7) | 35 | 2.8 | 1650*1550*1950 | 1041 | |||
| L05T-Y300-8 | 30(3.7*8) | 40 | 3.2 | 1650*1550*1950 | 1110 | |||
| L05T-Y330-8 | 33(3.7*9) | 45 | 3.6 | 1650*1550*1950 | 1200 | |||
| L05T-Y370-8 | 37(3.7*10) | 50 | 4.0 | 1650*1550*1950 | 1350 | |||
| G06TY BELT DRIVE | L06T-Y55-8 | 5.5 | 7.5 | 0.8 | 3N 380V 50Hz | 0.6 | 680*640*960 | 151 |
| L06T-Y110-8 | 11(5.5*2) | 15 | 1.2 | 1180*760*1250 | 350 | |||
| L06T-Y165-8 | 16.5(5.5*3) | 22 | 1.8 | 1180*760*1690 | 556 | |||
| L06T-Y220-8 | 22(5.5*4) | 30 | 2.4 | 1500*1180*1250 | 643 | |||
| L06T-Y275-8 | 27.5(5.5*5) | 37 | 3.0 | 1500*1180*1690 | 785 | |||
| L06T-Y330-8 | 33(5.5*6) | 45 | 3.6 | 1500*1180*1690 | 870 | |||
| L06T-Y385-8 | 38.5(5.5*7) | 53 | 4.2 | 1650*1550*1500 | 1200 | |||
| L06T-Y440-8 | 44(5.5*8) | 60 | 4.8 | 1650*1550*1500 | 1220 | |||
| L06T-Y495-8 | 49.5(5.5*9) | 67 | 5.4 | 1650*1550*1950 | 1330 | |||
| L06T-Y550-8 | 55(5.5*10) | 75 | 6.0 | 1650*1550*1950 | 1420 |
Models from 7.5 kW upward combine 2-10 scroll units in a single enclosure. For 10 bar operation select the 1.0 MPa version; for lower noise choose the PM type.
Applications
- Medical industry: hospital air compressor stations, dental clinics, oxygen generators
- Food industry: packaging and filling lines that must avoid oil contamination
- Electronics and semiconductor: precision manufacturing, chip production
- Pharmaceutical industry: gas conveying and stirring in aseptic environments
- Environmental protection: waste treatment and power plant processes
Why buy from Hejun
- 100% oil-free, Class 0 air. Scroll compression with no oil in the air path, verified to ISO 8573-1 Class 0 by TÜV Rheinland.
- Manufacturer, not a trader. 80+ patents, 30+ engineers and an in-house test centre in Zhejiang, China.
- OEM / ODM ready. Custom voltage, pressure, colour, logo, packaging and nameplate for distributors and equipment builders.
- Every unit tested three times before shipment: pre-run, teardown inspection and performance test.
- Fast response. Quotation within 24 hours, English-speaking export team, worldwide shipping.
Product detail images
Frequently asked questions
Belt type or PM type – which should I choose?
Choose the belt type if the compressor runs at full load for long periods and budget is the priority. Choose the PM type if air demand varies, if you want the lowest energy bill, or if noise must be minimal.
What is the maximum pressure?
0.8 MPa as standard and 1.0 MPa on request. Higher pressures can be discussed for OEM projects.
How many scroll units are inside a 15 kW model?
15 kW is built from four 3.7 kW scroll units, which is why the range extends smoothly from 2.2 kW to 55 kW.
