Dry Oxygen Compressor Air End
Oil-free scroll air end purpose-built for dry oxygen compression: 2.2-5.5 kW, 0.75 MPa outlet, 0.2-0.52 m3/min, permanent magnet motor.
+8615895086578
Mobile
sales@ty-cz.com
The dry oxygen compressor air end is a scroll compression module designed specifically for oxygen service. Because the scroll chamber contains no oil, the oxygen stream stays uncontaminated – the reason scroll technology is preferred over oil-lubricated or diaphragm alternatives in oxygen generation and medical gas systems. Models cover 2.2 kW, 3.7 kW and 5.5 kW with inlet pressures from 0 to 0.05 MPa and outlet pressure up to 0.75 MPa.
Key features
- Designed for oxygen. Oil-free compression path with materials and cleaning suitable for oxygen service.

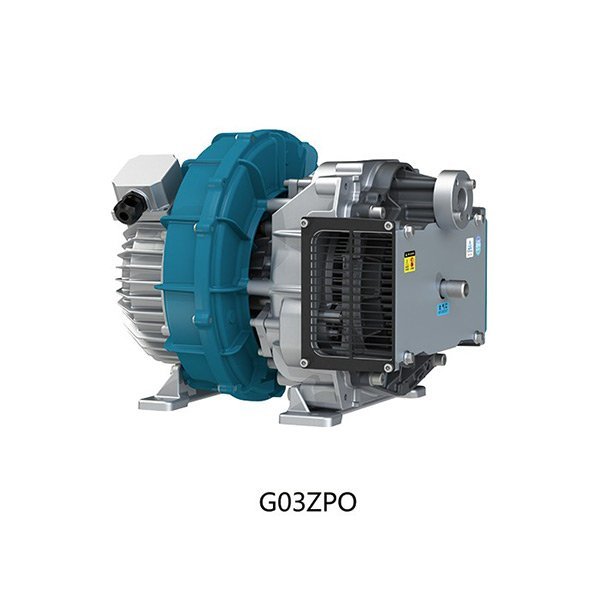

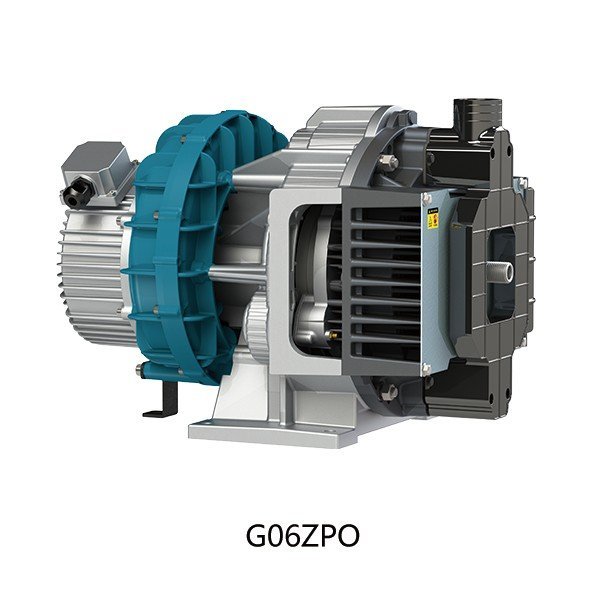

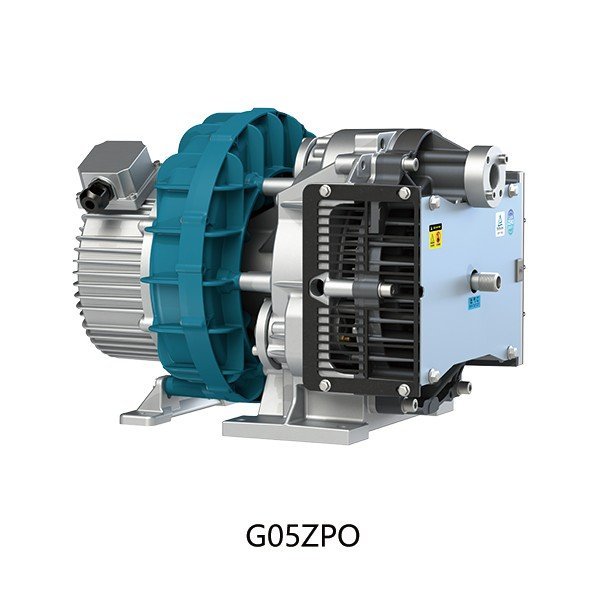

- Three models. G03ZPO 2.2 kW / 0.2 m3/min, G05ZPO 3.7 kW / 0.35 m3/min and G06ZPO 5.5 kW / 0.52 m3/min.
- Permanent magnet motor. Direct-coupled PMSM for compact size and high efficiency.
- Silent and low vibration. Scroll geometry produces continuous, pulse-free flow with low noise.
- Long maintenance interval. No oil changes, no oil separator and few wearing parts.
- Oxygen generator integration. Commonly used as the booster stage in PSA oxygen plants and medical oxygen systems.
Technical specifications
| MODEL NO. | RATED POWER kW (HP) | VOLTAGE (V) | AIR OUTLET PRESSURE (MPa) | AIR INTAKE PRESSURE (MPa) | RATED SPEED (rpm) | CAPACITY (m³/min) |
| G03ZPO | 2.2(3) | 220/380 | 0.75 | 0–0.05 | 2400 | 0.2 |
| G05ZPO | 3.7(5) | 2700 | 0.35 | |||
| G06ZPO | 5.5(7.5) | 2900 | 0.52 |
For oxygen service the compressor must be installed with oxygen-compatible seals, cleaning and ventilation. Please confirm inlet pressure and flow when enquiring so we can specify the correct model.
Applications
- PSA oxygen generators and oxygen booster stations
- Hospital medical gas systems
- Laboratory and analytical oxygen supply
- Industrial oxygen enrichment processes
Why buy from Hejun
- 100% oil-free, Class 0 air. Scroll compression with no oil in the air path, verified to ISO 8573-1 Class 0 by TÜV Rheinland.
- Manufacturer, not a trader. 80+ patents, 30+ engineers and an in-house test centre in Zhejiang, China.
- OEM / ODM ready. Custom voltage, pressure, colour, logo, packaging and nameplate for distributors and equipment builders.
- Every unit tested three times before shipment: pre-run, teardown inspection and performance test.
- Fast response. Quotation within 24 hours, English-speaking export team, worldwide shipping.
Product detail images
Frequently asked questions
Why use a scroll compressor for oxygen?
Oxygen reacts with hydrocarbon lubricants. A scroll compressor has no oil in the compression chamber, which removes the contamination and fire risk associated with oil-lubricated compressors.
What inlet pressure does it accept?
0 to 0.05 MPa at the inlet, with outlet pressure up to 0.75 MPa depending on model.
Can it be supplied as a complete oxygen compressor package?
Yes. We can supply the air end alone or integrated with motor, cooling and controls for your oxygen generator.
